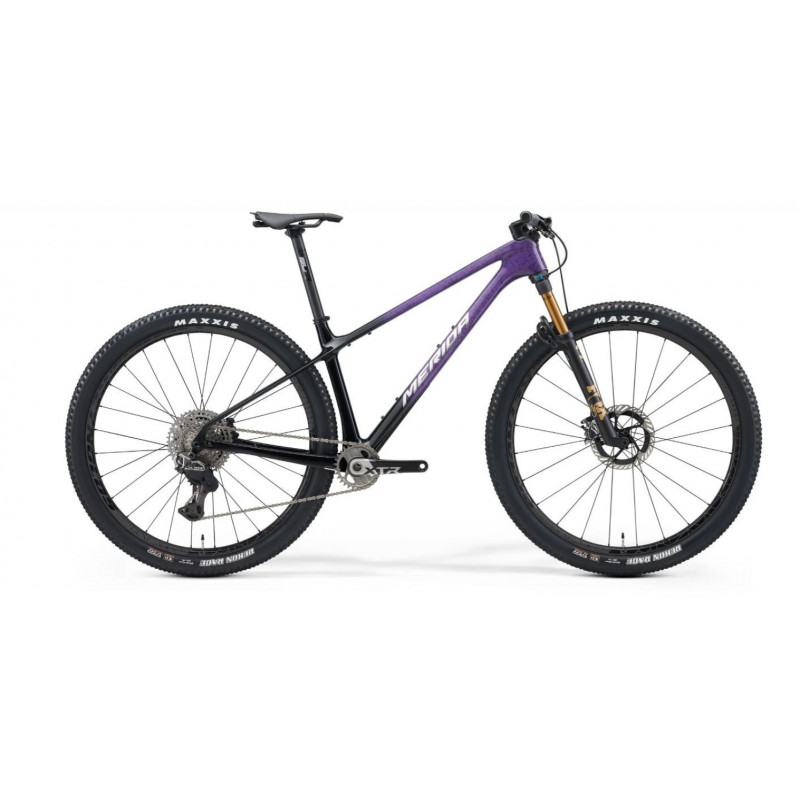

Bicycle technical specifications
Frame and suspension
Frame:
BIG.NINE CF5 III; MAT carbon; 29x2.4" max. WHS; 148x12 AST; BSA BBR
Fork:
Fox 32 SC Factory; Air; 100 STR; Tapered; 2 Position Remote lockout; 44mm fork offset; 29x2.4" max. WHS
Drivetrain
Rear derailleur:
Shimano XTR M9250; wireless; Shadow+ GS
Shifters:
Shimano XTR M9250; wireless
Crankset:
Shimano XTR M9220; 30 ATC Crank length: 170 mm-S, 175 mm-M up
Cassette:
Shimano XTR M9200; 10-45t
Chain:
Shimano XTR M9100
Bottom bracket:
Shimano MT900; BSA; 29mm axle
Pedals:
Not included
Brake system
Brakes:
Shimano XTR M9220; 2 piston / Shimano XTR M9220; 2 piston
Brake discs:
Shimano RT-CL900; 180mm / Shimano RT-CL900; 180mm
Cockpit
Handlebar:
FSA SL-K 1-piece cockpit; MAT carbon; 760 WHB, -7°
Stem:
/ Length: S, M: 60 mm, L, XL: 70 mm, XXL: 80 mm
Grips:
MERIDA TEAM CC
Headset:
Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing
Wheels
Wheel size:
29"
Rims:
Reynolds Blacklabel 309 XC; 110x15 WHF; 148x12 WHR; 30 IWR; Centerlock; Sram 12 Speed; MAT carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty
Rear hub:
MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Front tire:
Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO
Rear tire:
Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO
Saddle and components
Saddle:
SCRATCH M5 PAS NACK; V-mount adapter; incl. MERIDA minitool
Seat post:
FSA SL-K; MAT carbon; 30.9 DSP; 0 SSB
Seat post clamp:
MERIDA EXPERT
Accessories
Bell:
YWS-Alloy
